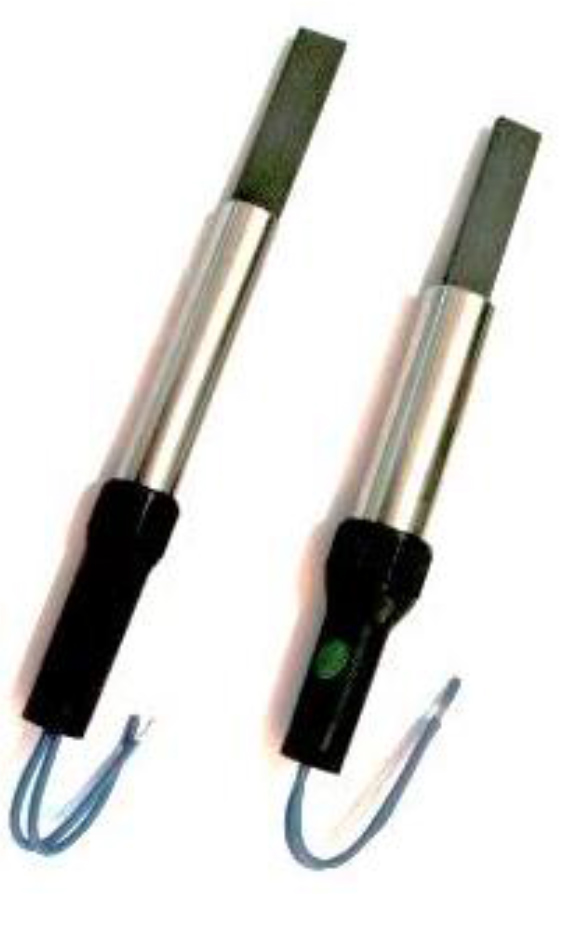

Pellet Boiler Igniter

Silicon Nitride Ceramic Heater

Pellet Boiler Igniter

TS/TD series silicon nitride ceramic heater are specially designed for storage water tank, long serving life will help you improve user experience of your products and earn a

better reputation.

I Smallest Size

I Fast Heating Up

I Long Serving Life

Introduction of Pellet Boiler Igniter

Ceramic heat component made of silicon nitride are normally rectangular in shape. Alloy wire is wrapped in dense silicon nitride ceramic body, where silicon nitride plays the role of heat transfer medium, dielectric medium as well as protect cover of alloy wire. With excellent thermal conductivity, insulation performance and comprehensive mechanical properties, the thickness of Torbos TM silicon nitride ceramic heat component is only 4 mm. The unmatched thermal expansion coefficient makes the scale crack and fall off on its own from the ceramic heater surface. This extraordinary heat component is your reliable choice for you heat solution and will provide you open ended design possibility.

Use Expense

Silicon nitride ceramic heater is your cost efficient choice.

Use expense = heater price + service times x (service cost + heater price)

Usually change a heater need to shut down the hot water system and empty the water tank. In most case the tanks are placed on roof, maintenance requires costly expertise.

Reliable heater will provide long continuous serving life, less maintenance needed.

Silicon nitride ceramic heater is your cost efficient choice; it will help you improve the user experience of your product as well as a better reputation.

Specification of Pellet Boiler Igniter

Electrical Specifications

Voltage: TS Series: AC220~240V~, 50/60 Hz

               TD Series: AC380V~, 50/60 Hz

Power: TS Series: 1000~3000 W

            TD Series: 4.5 kW~9 kW

Electric Insulation Strength: 2500 V/ 50 Hz，60 second no breakdown

happens (Room temperature)

Leakage Current: ≤0.25 mA [1] in working condition; ≤10 mA [2] if break in water

Thermostat limit: TS Series: 80℃ [3]

                              TD Series:  n.a.

                    [Customizable 60~95℃]

Life Time: >5000 h

Power on/off cycle: 100,000 次/Times

Max. Heat Load:70 W/cm²

Heating Medium:Water, oil [4] etc.

1.Although the leakage current is negligible, we still highly recommend you set the ground connection.

2. This 10 mA is the safe limitation stated in IEC60335 (GB4706.1-2005)

3. The thermostat is not used for daily temperature control, only in case the system temperature control is fail.

4. Specific encapsulation is needed when used to heat oil, please contact us for detail information.

Model of  Pellet Boiler Igniter

4 分/6 Plug in Type (1/2”& 3/4”) Pellet Boiler Igniter

Φ47 (58) mm Plug In Type Pellet Boiler Igniter

Pressurized type Pellet Boiler Igniter

High Power Heater Pellet Boiler Igniter
