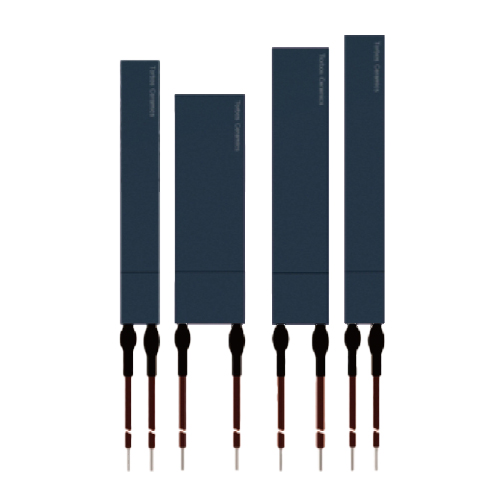

Electric Car Heating Elements

Product Description

Electric Car Heating Elements can be conveniently installed in the power cooling system of the car, and has a number of auxiliary functions.

It is an added heater in the water cooling system that reduces the hot water reaction time when the vehicle is started and maintains a preset temperature.

Electric Car Heating Elements from the car's power supply system is converted into heat energy and passed into the coolant. Electric heaters provide an important protection function when the electric energy of electric cars is excess.

The water heater also provides the necessary temperature range to heat and cool the energy battery system, optimizing its operating environment.

When the fuel cell system car is started, it can reduce the power consumption and provide the heat load to ensure the rapid start of the car's performance at low temperatures.

Electric Car Heating Elements Advantages: Light weight, small size, high safety, corrosion resistance, high voltage, high stability.

■ Lightweight, small size:

The weight is only 1/10 of the ordinary metal heater, and the size is only 1/5 of the ordinary metal heater.

■ High safety, corrosion resistance:

Fracture damage leakage in the safe range, capable of all inorganic acids except hydrofluoric acid and less than 30% caustic soda solution.

■ High voltage, high stability:

High voltage systems are not limited by the power output capacity of the 12V system, and can provide very strong power output and efficient heaters, which is more convenient for accurate adjustment of the temperature management system in a purely electric HVAC system. The high voltage silicon nitride heater provides an optimized solution with the highest degree of safety while ensuring its performance.

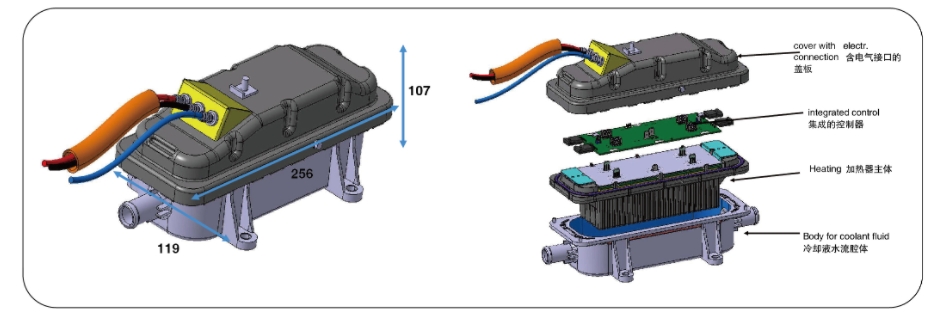

Electric Car Heating Elements Schematic diagram

Electric Car Heating Elements is an important auxiliary device for engine cold start, car heating and windshield defrosting under low temperature conditions. In addition to defrosting the windshield and heating the interior of the car, the heater can also effectively improve the cold start performance of the car and improve the adverse emissions of the cool car. Therefore, this product has a good application prospect at home and abroad. Its advantages are: simple structure, small size, low noise, easy to start, clean combustion, high power density, very save vehicle battery power. Stable combustion, high combustion efficiency, and greatly extend the service life of the motor, reduce the technical requirements for automotive batteries and compressor motors. It can realize the common use of diesel, gasoline and kerosene, and can also be used in other heating devices outside the fuel heater, which is practical.

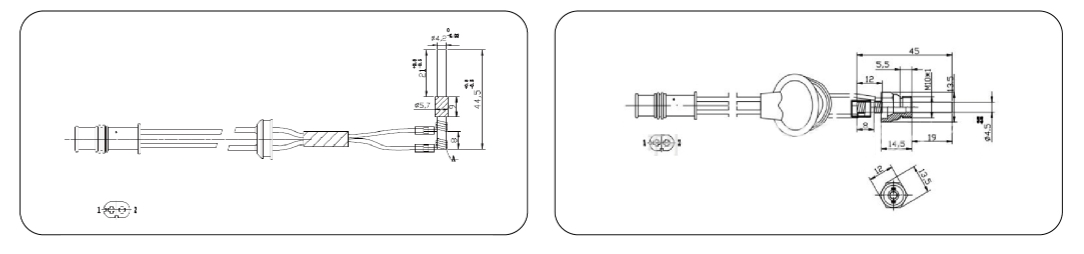

Electric Car Heating Elements Structure chart

Electric Car Heating Elements Technical index

Electric Car Heating Elements Electrical property parameter

Rated voltage :6V~24V;  Rated power :30W~100W

■ High temperature resistance, up to 1200℃

■ High surface load, maximum heating load up to 25w/cm2

■ Resistant to acid and alkali corrosion

■ Small size

■ The thermal inertia is small and the heating rate is fast.

■ Long life: correct service life >10000n

■ Number of on-off :100000

■ Fast preheating: When the preheating temperature reaches 1000℃, the preheating time is 3~5s

■ Low temperature starting performance is good :-40℃ can be reliably started

■ High temperature strength, suitable for parking heaters, high-speed diesel engines, high temperature ignition devices

■ Applicable to various high temperature ignition devices

Electric Car Heating Elements Product model and parameters
